HTS125
125
KN.m
Rated Lifting Moment
5000
Kg
Rated Lifting Capacity
4
Boom Section
11.03
m
Max. Working Radius
13.19
m
Max. Lifting Height
ADVANTAGES INTRODUCTION
Dual Swing Drive System: Equipped with two independent swing drive devices. Enables free switching between single/double work modes via electric-hydraulic control, achieving low-speed operation under heavy loads and high-speed operation under light loads.
Dual Cylinder Action Free-Switching System: Freely select and control the immediate action of either cylinder, achieving the optimal boom working status and the boom's best load-bearing strength.
U-Shaped Boom Design: Reduces boom self-weight, enhances boom stiffness, provides excellent bending resistance, and improves telescoping guidance performance.
Intelligent Alert System: Automatically triggers an alarming and simultaneously cuts off dangerous action when overload conditions occur in the working status.
ADVANTAGES INTRODUCTION
Dual Swing Drive System: Equipped with two independent swing drive devices. Enables free switching between single/double work modes via electric-hydraulic control, achieving low-speed operation under heavy loads and high-speed operation under light loads.
Dual Cylinder Action Free-Switching System: Freely select and control the immediate action of either cylinder, achieving the optimal boom working status and the boom's best load-bearing strength.
U-Shaped Boom Design: Reduces boom self-weight, enhances boom stiffness, provides excellent bending resistance, and improves telescoping guidance performance.
Intelligent Alert System: Automatically triggers an alarming and simultaneously cuts off dangerous action when overload conditions occur in the working status.
- Product Description

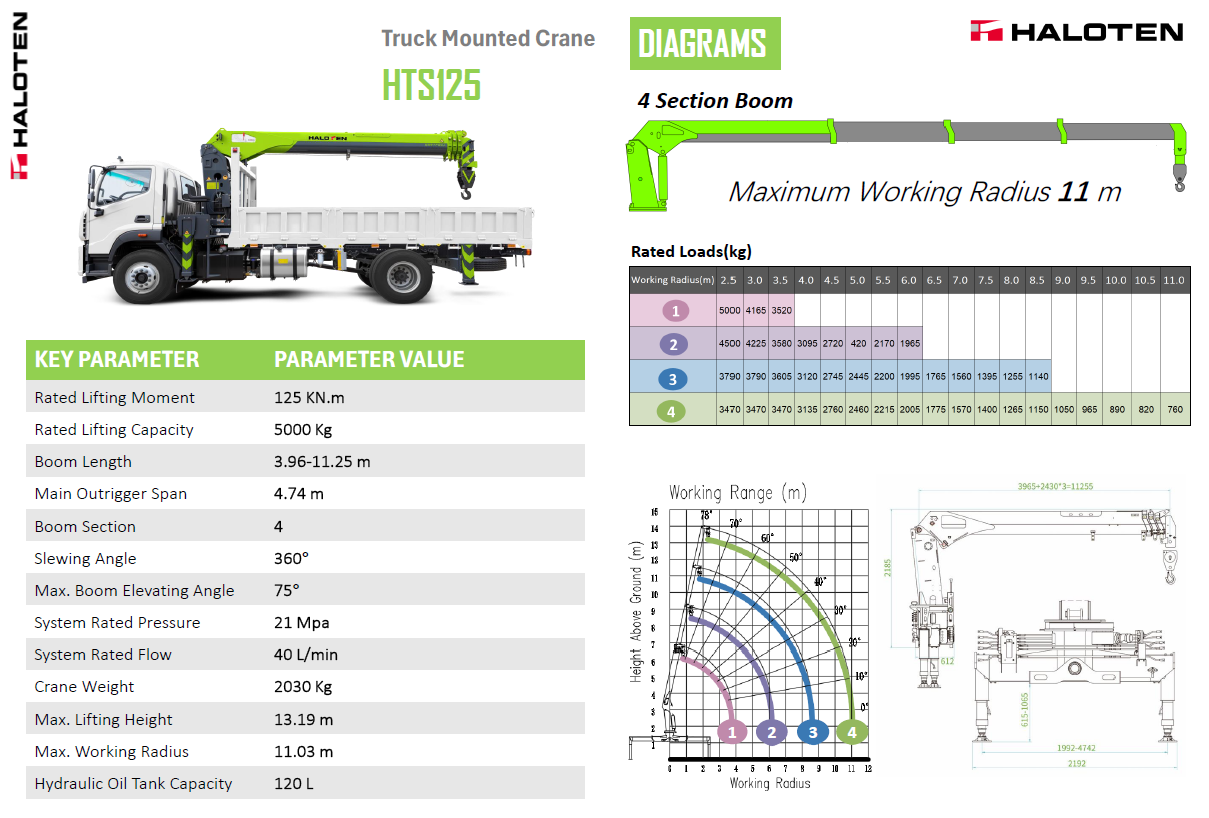

- Brochure
-
- Commodity name: HTS125
- Rated Lifting Moment:: 125
- Rated Lifting Capacity:: 5000
- Boom Section:: 4
- Max. Working Radius:: 11.03
- Max. Lifting Height:: 13.19

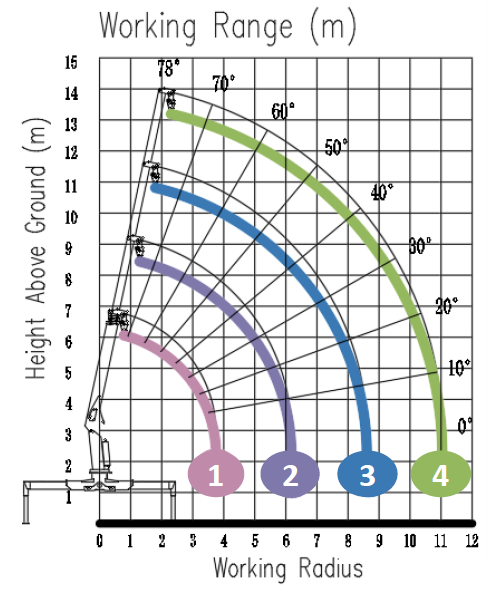

Rated Lifting Moment 125 KN.m Rated Lifting Capacity 5 T Boom Length 3.96-11.25 m Main Outrigger Span 4.74 m Boom Section 4 Slewing Angle 360° Max. Boom Elevating Angle 75° System Rated Pressure 21 Mpa System Rated Flow 40 L/min Crane Weight 2030 Kg Max.Lifting Height 13.19 m Max. Working Radius 11.03 m Hydraulic Oil Tank Capacity 120 L LIFTING CHART

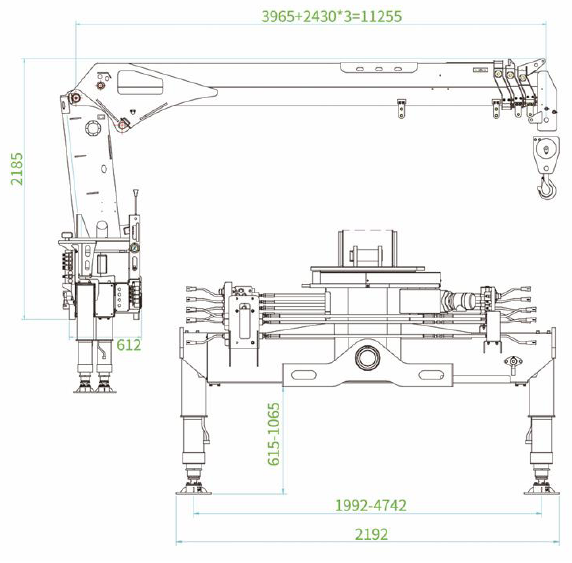

CRANE DIAMENSION
-
