HTS180
180
KN.m
Rated Lifting Moment
7000
Kg
Rated Lifting Capacity
4
Boom Section
12.6
m
Max. Working Radius
14.8
m
Max. Lifting Height
ADVANTAGES INTRODUCTION
Dual Swing Drive System: Equipped with two independent swing drive devices. Enables free switching between single/double work modes via electric-hydraulic control, achieving low-speed operation under heavy loads and high-speed operation under light loads.
Dual Cylinder Action Free-Switching System: Freely select and control the immediate action of either cylinder, achieving the optimal boom working status and the boom's best load-bearing strength.
U-Shaped Boom Design: Reduces boom self-weight, enhances boom stiffness, provides excellent bending resistance, and improves telescoping guidance performance.
Intelligent Alert System: Automatically triggers an alarming and simultaneously cuts off dangerous action when overload conditions occur in the working status.
ADVANTAGES INTRODUCTION
Dual Swing Drive System: Equipped with two independent swing drive devices. Enables free switching between single/double work modes via electric-hydraulic control, achieving low-speed operation under heavy loads and high-speed operation under light loads.
Dual Cylinder Action Free-Switching System: Freely select and control the immediate action of either cylinder, achieving the optimal boom working status and the boom's best load-bearing strength.
U-Shaped Boom Design: Reduces boom self-weight, enhances boom stiffness, provides excellent bending resistance, and improves telescoping guidance performance.
Intelligent Alert System: Automatically triggers an alarming and simultaneously cuts off dangerous action when overload conditions occur in the working status.
- Product Description

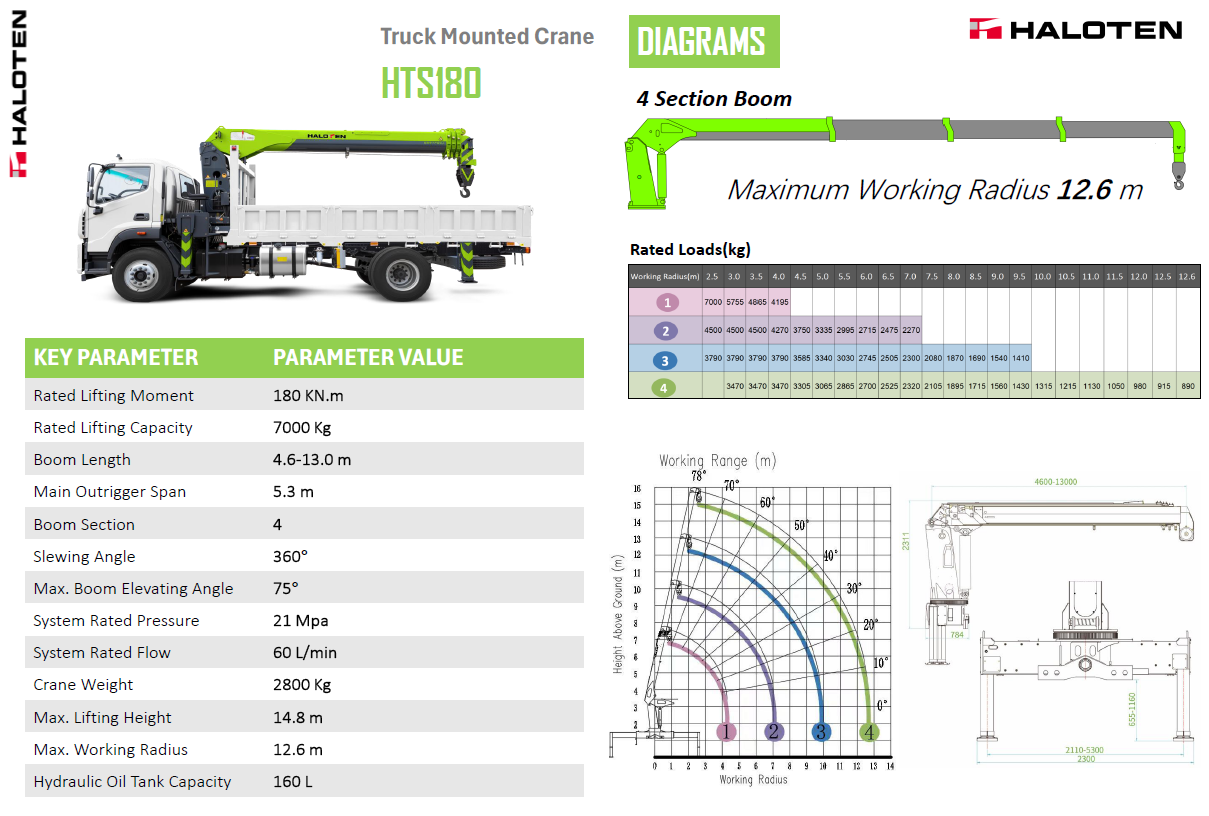

- Brochure
-
- Commodity name: HTS180
- Rated Lifting Moment:: 180
- Rated Lifting Capacity:: 7000
- Boom Section:: 4
- Max. Working Radius:: 12.6
- Max. Lifting Height:: 14.8

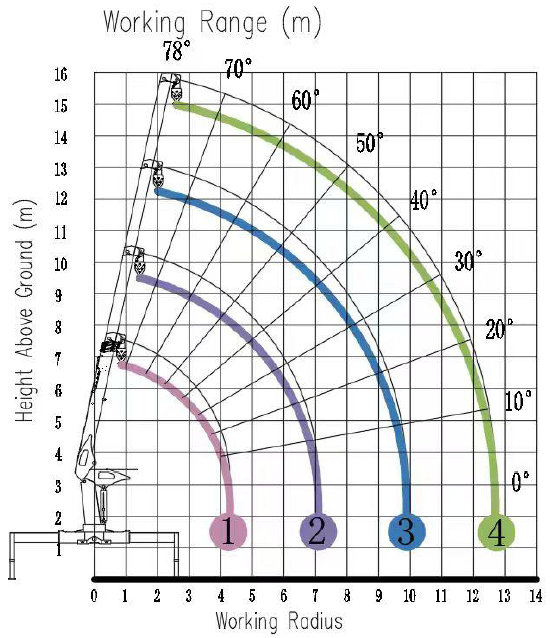

Rated Lifting Moment 180 KN.m Rated Lifting Capacity 7 T Boom Length 4.6-13.0 m Main Outrigger Span 5.3 m Boom Section 4 Slewing Angle 360° Max. Boom Elevating Angle 75° System Rated Pressure 21 Mpa System Rated Flow 60 L/min Crane Weight 2800 Kg Max.Lifting Height 14.8 m Max. Working Radius 12.6 m Hydraulic Oil Tank Capacity 160 L LIFTING CHART

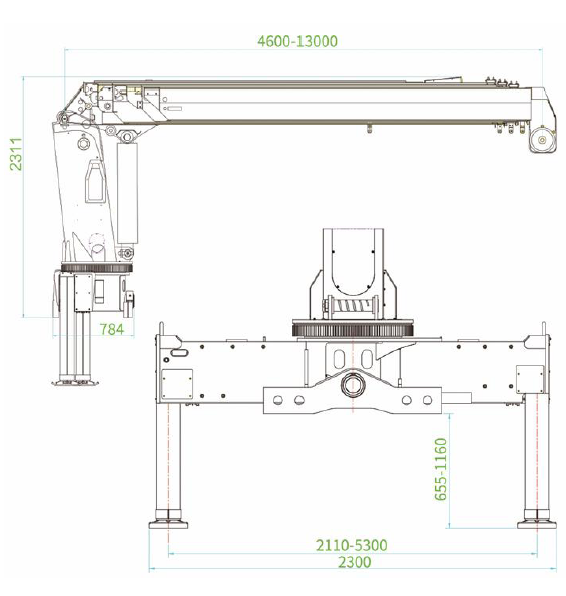

CRANE DIAMENSION
-
