HTS75
75
KN.m
Rated Lifting Moment
3000
Kg
Rated Lifting Capacity
3
Boom Section
8.28
m
Max. Working Radius
10.62
m
Max. Lifting Height
ADVANTAGES INTRODUCTION
Dual Swing Drive System: Equipped with two independent swing drive devices. Enables free switching between single/double work modes via electric-hydraulic control, achieving low-speed operation under heavy loads and high-speed operation under light loads.
Dual Cylinder Action Free-Switching System: Freely select and control the immediate action of either cylinder, achieving the optimal boom working status and the boom's best load-bearing strength.
U-Shaped Boom Design: Reduces boom self-weight, enhances boom stiffness, provides excellent bending resistance, and improves telescoping guidance performance.
Intelligent Alert System: Automatically triggers an alarming and simultaneously cuts off dangerous action when overload conditions occur in the working status.
ADVANTAGES INTRODUCTION
Dual Swing Drive System: Equipped with two independent swing drive devices. Enables free switching between single/double work modes via electric-hydraulic control, achieving low-speed operation under heavy loads and high-speed operation under light loads.
Dual Cylinder Action Free-Switching System: Freely select and control the immediate action of either cylinder, achieving the optimal boom working status and the boom's best load-bearing strength.
U-Shaped Boom Design: Reduces boom self-weight, enhances boom stiffness, provides excellent bending resistance, and improves telescoping guidance performance.
Intelligent Alert System: Automatically triggers an alarming and simultaneously cuts off dangerous action when overload conditions occur in the working status.
- Product Description

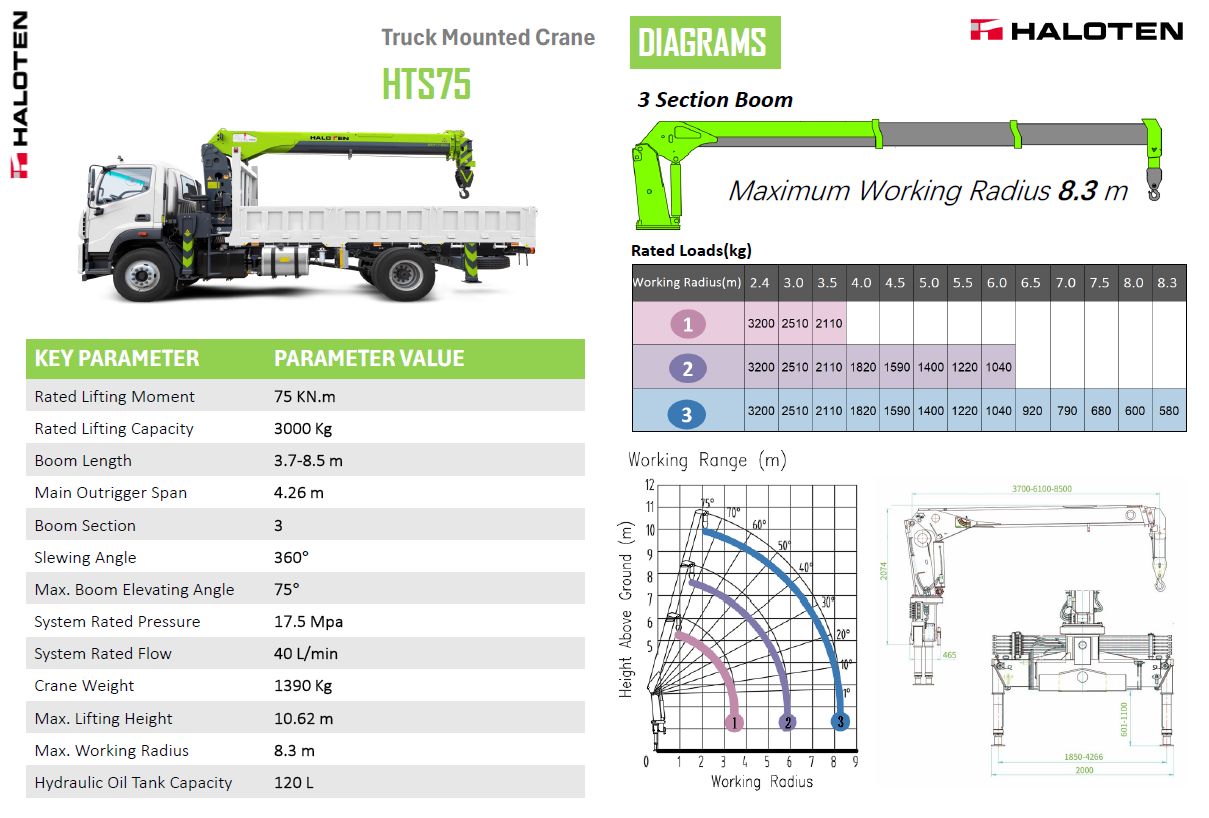

- Brochure
-
- Commodity name: HTS75
- Rated Lifting Moment:: 75
- Rated Lifting Capacity:: 3000
- Boom Section:: 3
- Max. Working Radius:: 8.28
- Max. Lifting Height:: 10.62

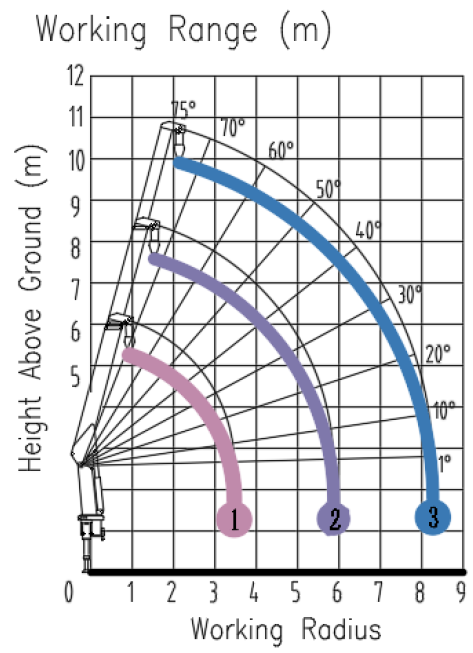

Rated Lifting Moment 75 KN.m Rated Lifting Capacity 3 T Boom Length 3.7-8.5 m Main Outrigger Span 4.26 m Boom Section 3 Slewing Angle 360° Max. Boom Elevating Angle 75° System Rated Pressure 17.5 Mpa System Rated Flow 40 L/min Crane Weight 1390 Kg Max.Lifting Height 10.62 m Max. Working Radius 8.28 m Hydraulic Oil Tank Capacity 120 L LIFTING CHART

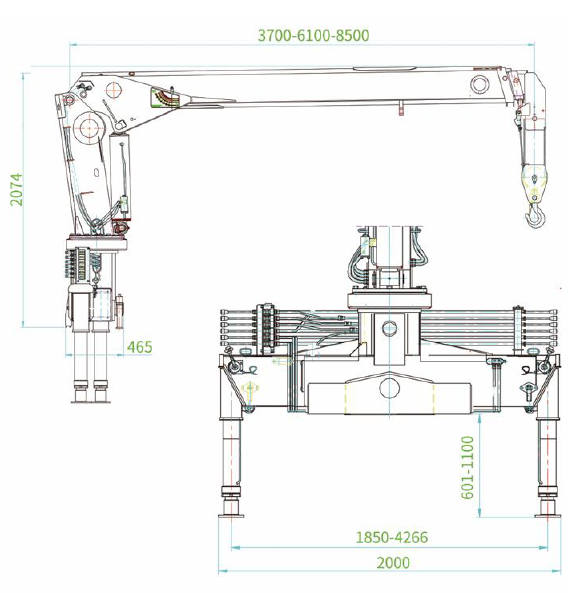

CRANE DIAMENSION
-
