HTS250
250
KN.m
Rated Lifting Moment
10000
Kg
Rated Lifting Capacity
5
Boom Section
18.27
m
Max. Working Radius
20.3
m
Max. Lifting Height
ADVANTAGES INTRODUCTION
Dual Swing Drive System: Equipped with two independent swing drive devices. Enables free switching between single/double work modes via electric-hydraulic control, achieving low-speed operation under heavy loads and high-speed operation under light loads.
Dual Cylinder Action Free-Switching System: Freely select and control the immediate action of either cylinder, achieving the optimal boom working status and the boom's best load-bearing strength.
U-Shaped Boom Design: Reduces boom self-weight, enhances boom stiffness, provides excellent bending resistance, and improves telescoping guidance performance.
Intelligent Alert System: Automatically triggers an alarming and simultaneously cuts off dangerous action when overload conditions occur in the working status.
ADVANTAGES INTRODUCTION
Dual Swing Drive System: Equipped with two independent swing drive devices. Enables free switching between single/double work modes via electric-hydraulic control, achieving low-speed operation under heavy loads and high-speed operation under light loads.
Dual Cylinder Action Free-Switching System: Freely select and control the immediate action of either cylinder, achieving the optimal boom working status and the boom's best load-bearing strength.
U-Shaped Boom Design: Reduces boom self-weight, enhances boom stiffness, provides excellent bending resistance, and improves telescoping guidance performance.
Intelligent Alert System: Automatically triggers an alarming and simultaneously cuts off dangerous action when overload conditions occur in the working status.
- Product Description

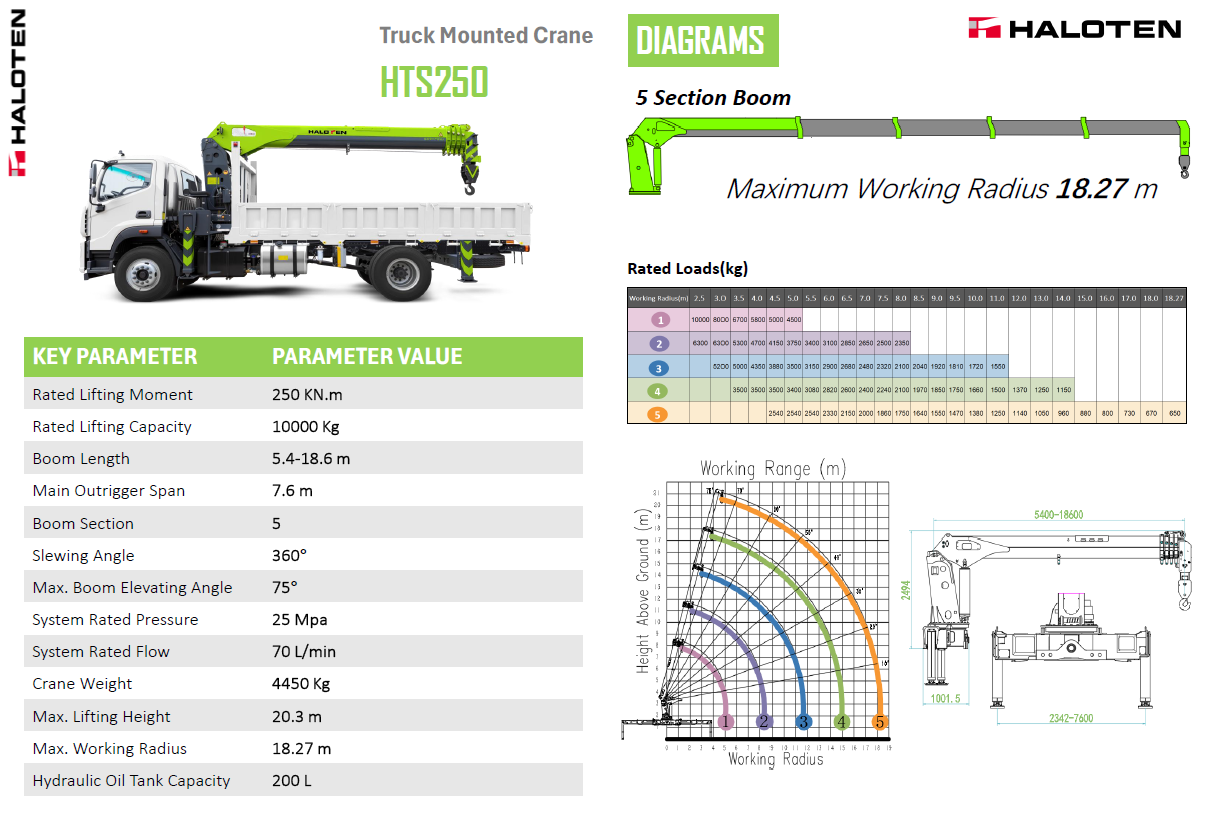

- Brochure
-
- Commodity name: HTS250
- Rated Lifting Moment:: 250
- Rated Lifting Capacity:: 10000
- Boom Section:: 5
- Max. Working Radius:: 18.27
- Max. Lifting Height:: 20.3

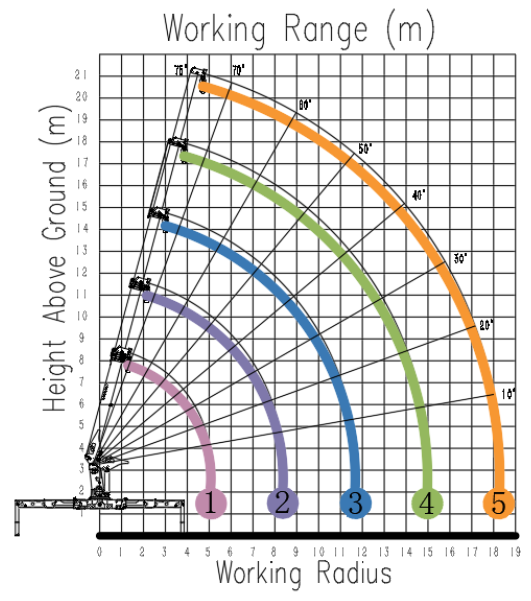

Rated Lifting Moment 250 KN.m Rated Lifting Capacity 10 T Boom Length 5.4-18.6 m Main Outrigger Span 7.6 m Boom Section 5 Slewing Angle 360° Max. Boom Elevating Angle 75° System Rated Pressure 25 Mpa System Rated Flow 75 L/min Crane Weight 4450 Kg Max.Lifting Height 20.3 m Max. Working Radius 18.27 m Hydraulic Oil Tank Capacity 200 L LIFTING CHART

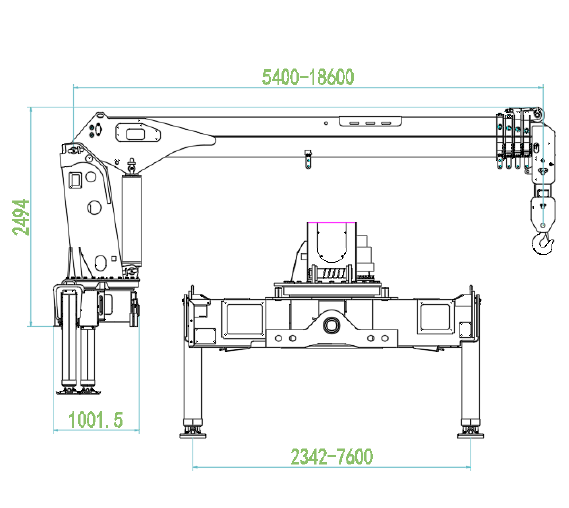

CRANE DIAMENSION
-
