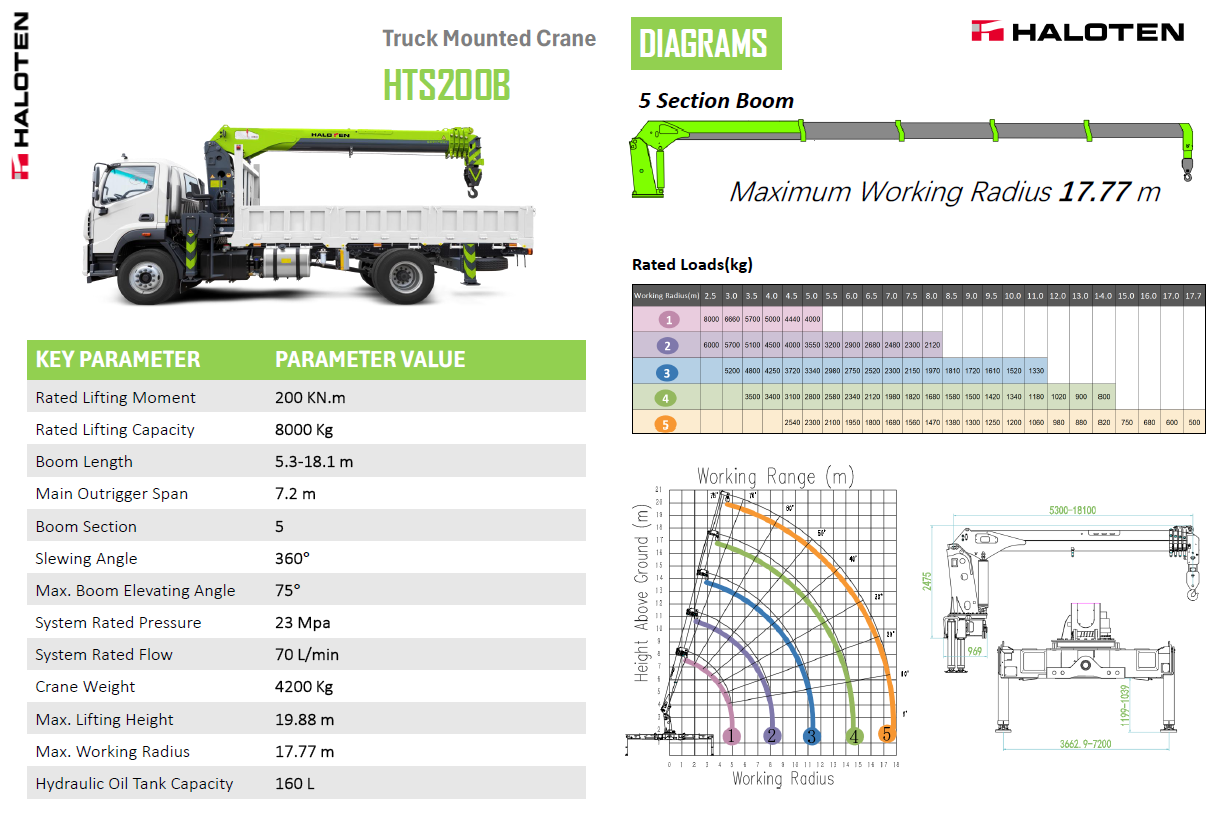

HTS200B
200
KN.m
Rated Lifting Moment
8000
Kg
Rated Lifting Capacity
5
Boom Section
17.77
m
Max. Working Radius
19.88
m
Max. Lifting Height
ADVANTAGES INTRODUCTION
Dual Swing Drive System: Equipped with two independent swing drive devices. Enables free switching between single/double work modes via electric-hydraulic control, achieving low-speed operation under heavy loads and high-speed operation under light loads.
Dual Cylinder Action Free-Switching System: Freely select and control the immediate action of either cylinder, achieving the optimal boom working status and the boom's best load-bearing strength.
U-Shaped Boom Design: Reduces boom self-weight, enhances boom stiffness, provides excellent bending resistance, and improves telescoping guidance performance.
Intelligent Alert System: Automatically triggers an alarming and simultaneously cuts off dangerous action when overload conditions occur in the working status.
ADVANTAGES INTRODUCTION
Dual Swing Drive System: Equipped with two independent swing drive devices. Enables free switching between single/double work modes via electric-hydraulic control, achieving low-speed operation under heavy loads and high-speed operation under light loads.
Dual Cylinder Action Free-Switching System: Freely select and control the immediate action of either cylinder, achieving the optimal boom working status and the boom's best load-bearing strength.
U-Shaped Boom Design: Reduces boom self-weight, enhances boom stiffness, provides excellent bending resistance, and improves telescoping guidance performance.
Intelligent Alert System: Automatically triggers an alarming and simultaneously cuts off dangerous action when overload conditions occur in the working status.
- Product Description
- Brochure
-
- Commodity name: HTS200B
- Rated Lifting Moment:: 200
- Rated Lifting Capacity:: 8000
- Boom Section:: 5
- Max. Working Radius:: 17.77
- Max. Lifting Height:: 19.88

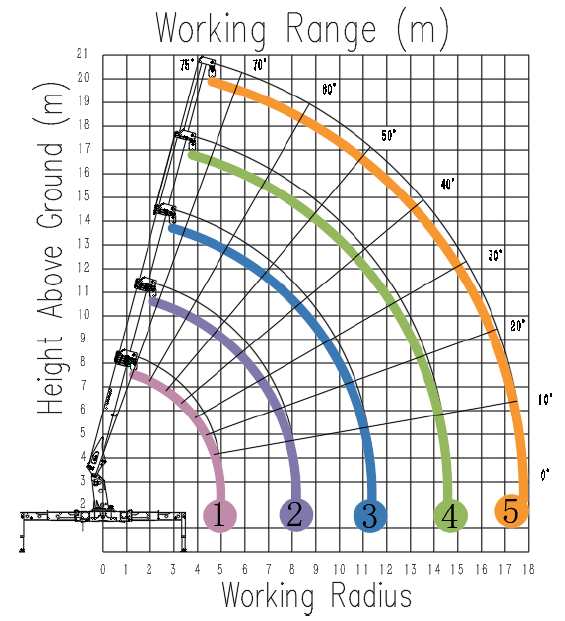

Rated Lifting Moment 200 KN.m Rated Lifting Capacity 8 T Boom Length 5.3-18.1 m Main Outrigger Span 7.2 m Boom Section 5 Slewing Angle 360° Max. Boom Elevating Angle 75° System Rated Pressure 23 Mpa System Rated Flow 70 L/min Crane Weight 4200 Kg Max.Lifting Height 19.88 m Max. Working Radius 17.77 m Hydraulic Oil Tank Capacity 160 L LIFTING CHART

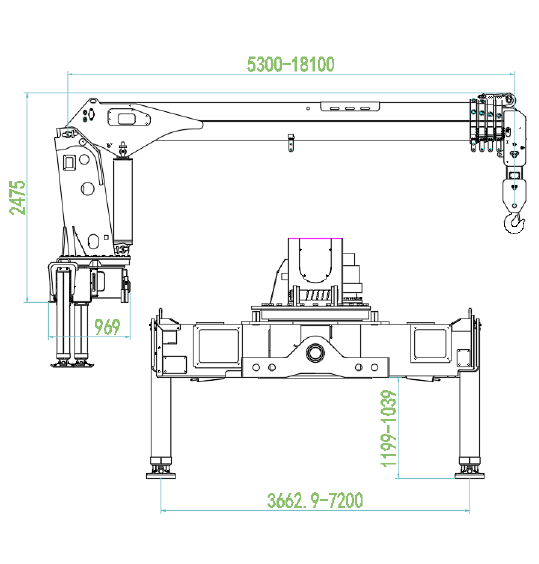

CRANE DIAMENSION
-
