HTS300C
300
KN.m
Rated Lifting Moment
12000
Kg
Rated Lifting Capacity
5
Boom Section
19.35
m
Max. Working Radius
21.5
m
Max. Lifting Height
ADVANTAGES INTRODUCTION
Dual Swing Drive System: Equipped with two independent swing drive devices. Enables free switching between single/double work modes via electric-hydraulic control, achieving low-speed operation under heavy loads and high-speed operation under light loads.
Dual Cylinder Action Free-Switching System: Freely select and control the immediate action of either cylinder, achieving the optimal boom working status and the boom's best load-bearing strength.
U-Shaped Boom Design: Reduces boom self-weight, enhances boom stiffness, provides excellent bending resistance, and improves telescoping guidance performance.
Intelligent Alert System: Automatically triggers an alarming and simultaneously cuts off dangerous action when overload conditions occur in the working status.
ADVANTAGES INTRODUCTION
Dual Swing Drive System: Equipped with two independent swing drive devices. Enables free switching between single/double work modes via electric-hydraulic control, achieving low-speed operation under heavy loads and high-speed operation under light loads.
Dual Cylinder Action Free-Switching System: Freely select and control the immediate action of either cylinder, achieving the optimal boom working status and the boom's best load-bearing strength.
U-Shaped Boom Design: Reduces boom self-weight, enhances boom stiffness, provides excellent bending resistance, and improves telescoping guidance performance.
Intelligent Alert System: Automatically triggers an alarming and simultaneously cuts off dangerous action when overload conditions occur in the working status.
- Product Description

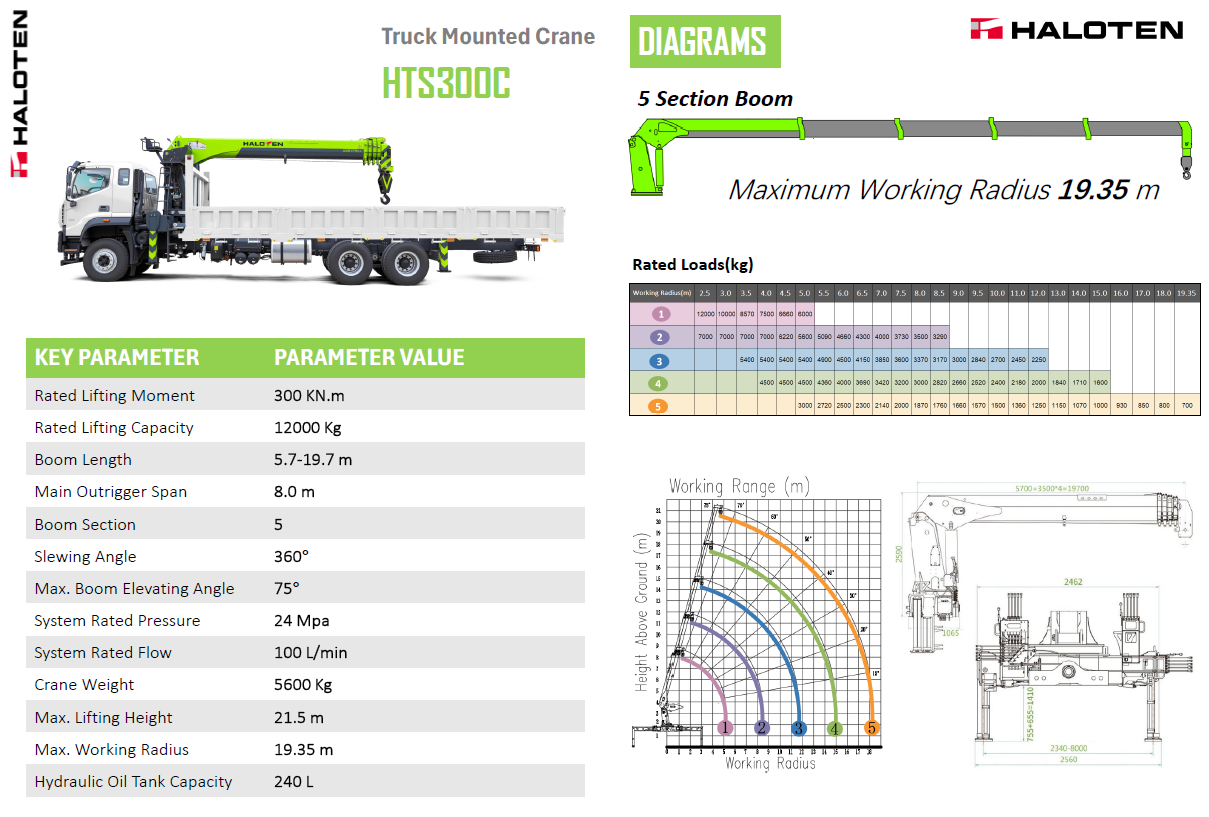

- Brochure
-
- Commodity name: HTS300C
- Rated Lifting Moment:: 300
- Rated Lifting Capacity:: 12000
- Boom Section:: 5
- Max. Working Radius:: 19.35
- Max. Lifting Height:: 21.5

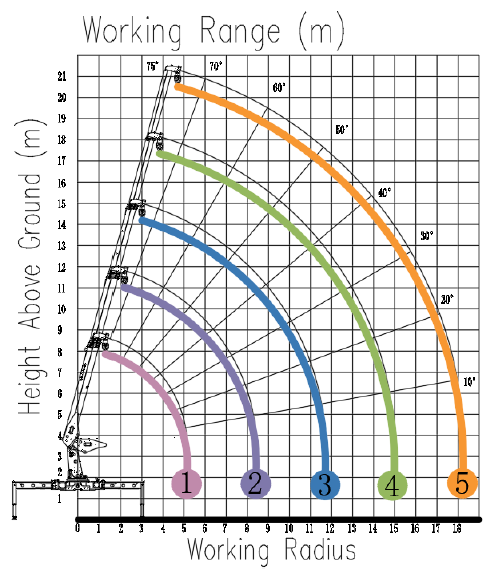

Rated Lifting Moment 300 KN.m Rated Lifting Capacity 12 T Boom Length 5.7-19.7 m Main Outrigger Span 8.0 m Boom Section 5 Slewing Angle 360° Max. Boom Elevating Angle 75° System Rated Pressure 24 Mpa System Rated Flow 100 L/min Crane Weight 5600 Kg Max.Lifting Height 21.5 m Max. Working Radius 19.35 m Hydraulic Oil Tank Capacity 240 L LIFTING CHART

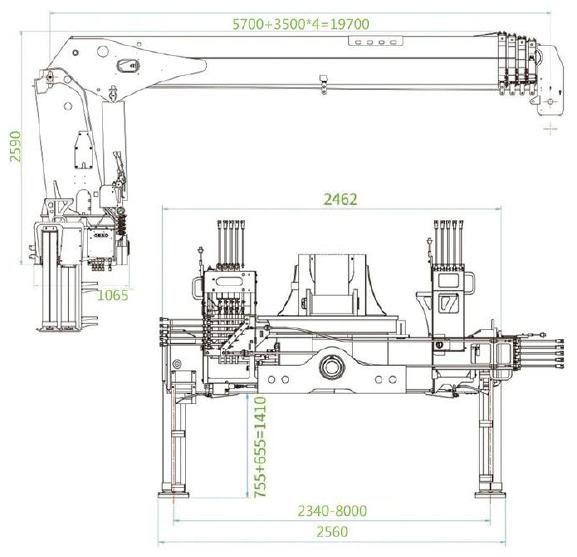

CRANE DIAMENSION
-
