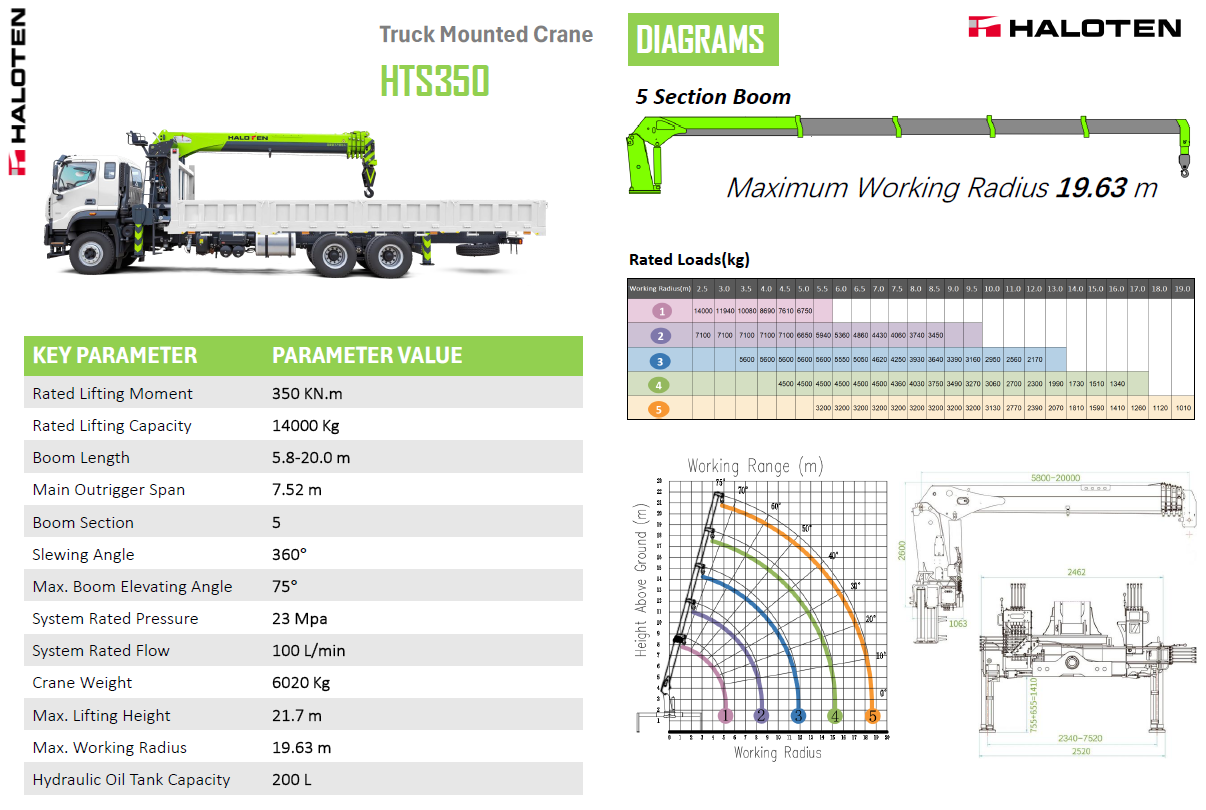

HTS350
350
KN.m
Rated Lifting Moment
14000
Kg
Rated Lifting Capacity
5
Boom Section
19.63
m
Max. Working Radius
21.7
m
Max. Lifting Height
ADVANTAGES INTRODUCTION
Dual Swing Drive System: Equipped with two independent swing drive devices. Enables free switching between single/double work modes via electric-hydraulic control, achieving low-speed operation under heavy loads and high-speed operation under light loads.
Dual Cylinder Action Free-Switching System: Freely select and control the immediate action of either cylinder, achieving the optimal boom working status and the boom's best load-bearing strength.
U-Shaped Boom Design: Reduces boom self-weight, enhances boom stiffness, provides excellent bending resistance, and improves telescoping guidance performance.
Intelligent Alert System: Automatically triggers an alarming and simultaneously cuts off dangerous action when overload conditions occur in the working status.
ADVANTAGES INTRODUCTION
Dual Swing Drive System: Equipped with two independent swing drive devices. Enables free switching between single/double work modes via electric-hydraulic control, achieving low-speed operation under heavy loads and high-speed operation under light loads.
Dual Cylinder Action Free-Switching System: Freely select and control the immediate action of either cylinder, achieving the optimal boom working status and the boom's best load-bearing strength.
U-Shaped Boom Design: Reduces boom self-weight, enhances boom stiffness, provides excellent bending resistance, and improves telescoping guidance performance.
Intelligent Alert System: Automatically triggers an alarming and simultaneously cuts off dangerous action when overload conditions occur in the working status.
- Product Description
- Brochure
-
- Commodity name: HTS350
- Rated Lifting Moment:: 350
- Rated Lifting Capacity:: 14000
- Boom Section:: 5
- Max. Working Radius:: 19.63
- Max. Lifting Height:: 21.7

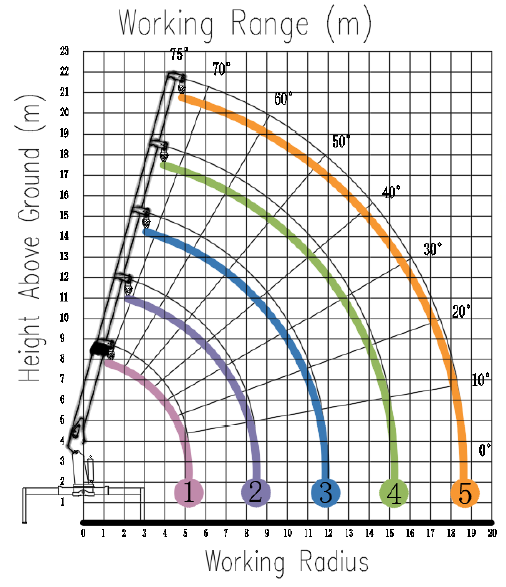

Rated Lifting Moment 350 KN.m Rated Lifting Capacity 14 T Boom Length 5.8-20.0 m Main Outrigger Span 7.52 m Boom Section 5 Slewing Angle 360° Max. Boom Elevating Angle 75° System Rated Pressure 23 Mpa System Rated Flow 100 L/min Crane Weight 6020 Kg Max.Lifting Height 21.7 m Max. Working Radius 19.63 m Hydraulic Oil Tank Capacity 200 L LIFTING CHART

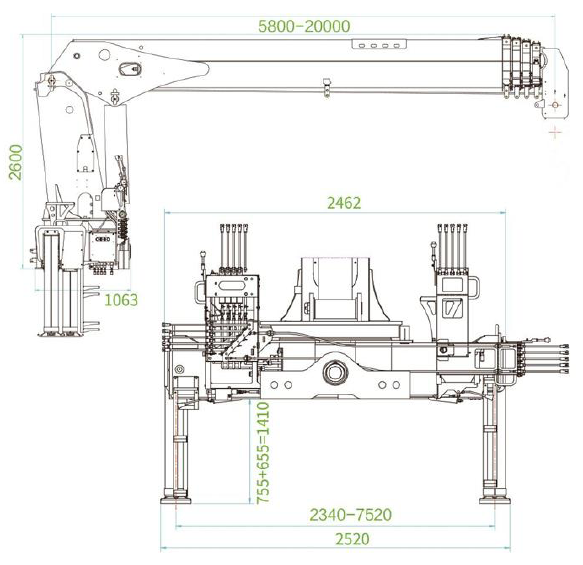

CRANE DIAMENSION
-
