HTS400
400
KN.m
Rated Lifting Moment
16000
Kg
Rated Lifting Capacity
5
Boom Section
21.65
m
Max. Working Radius
21.65
m
Max. Lifting Height
ADVANTAGES INTRODUCTION
Dual Swing Drive System: Equipped with two independent swing drive devices. Enables free switching between single/double work modes via electric-hydraulic control, achieving low-speed operation under heavy loads and high-speed operation under light loads.
Dual Cylinder Action Free-Switching System: Freely select and control the immediate action of either cylinder, achieving the optimal boom working status and the boom's best load-bearing strength.
U-Shaped Boom Design: Reduces boom self-weight, enhances boom stiffness, provides excellent bending resistance, and improves telescoping guidance performance.
Intelligent Alert System: Automatically triggers an alarming and simultaneously cuts off dangerous action when overload conditions occur in the working status.
ADVANTAGES INTRODUCTION
Dual Swing Drive System: Equipped with two independent swing drive devices. Enables free switching between single/double work modes via electric-hydraulic control, achieving low-speed operation under heavy loads and high-speed operation under light loads.
Dual Cylinder Action Free-Switching System: Freely select and control the immediate action of either cylinder, achieving the optimal boom working status and the boom's best load-bearing strength.
U-Shaped Boom Design: Reduces boom self-weight, enhances boom stiffness, provides excellent bending resistance, and improves telescoping guidance performance.
Intelligent Alert System: Automatically triggers an alarming and simultaneously cuts off dangerous action when overload conditions occur in the working status.
- Product Description

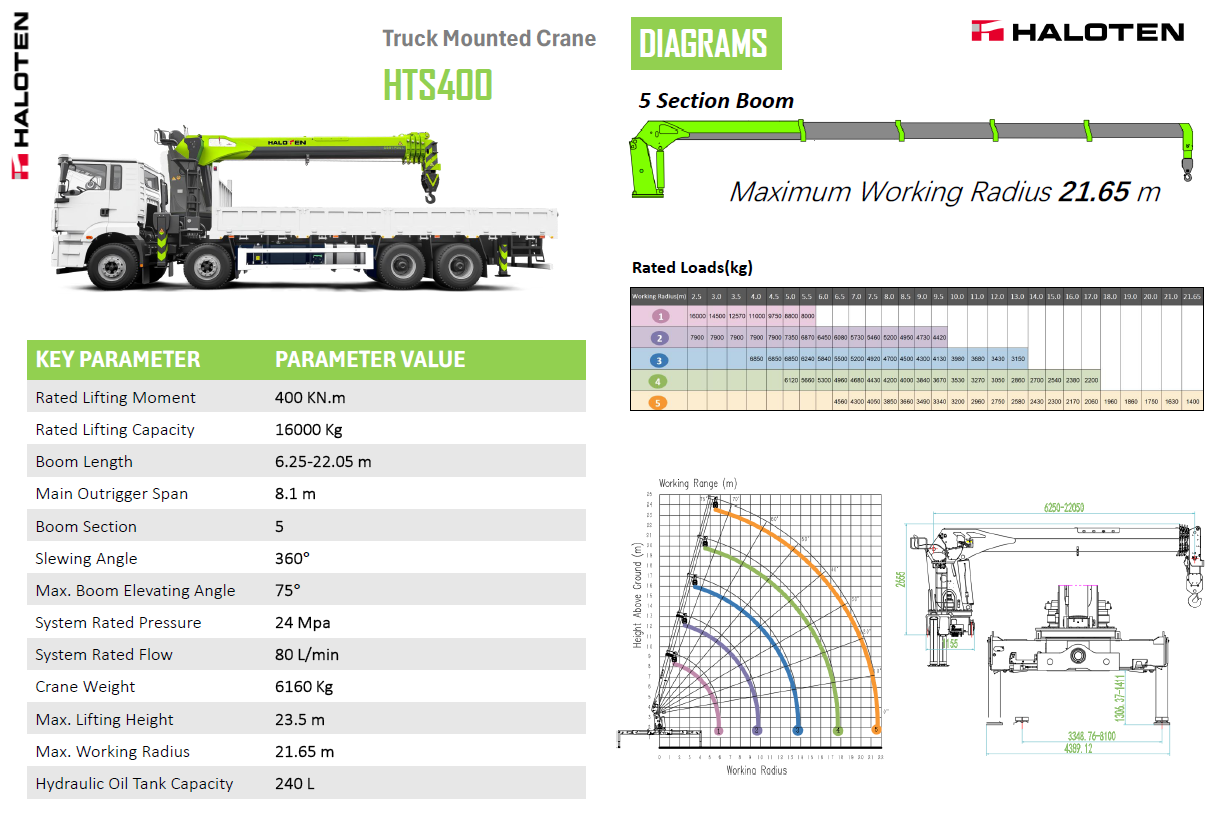

- Brochure
-
- Commodity name: HTS400
- Rated Lifting Moment:: 400
- Rated Lifting Capacity:: 16000
- Boom Section:: 5
- Max. Working Radius:: 21.65
- Max. Lifting Height:: 21.65

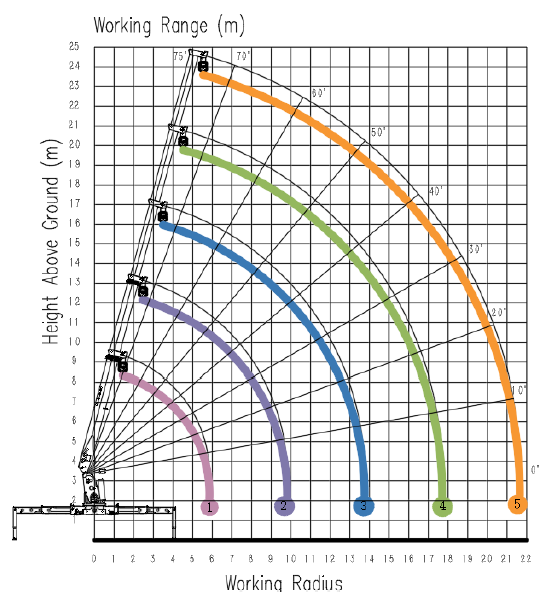

Rated Lifting Moment 400 KN.m Rated Lifting Capacity 16 T Boom Length 6.25-22.05 m Main Outrigger Span 8.1 m Boom Section 5 Slewing Angle 360° Max. Boom Elevating Angle 75° System Rated Pressure 24 Mpa System Rated Flow 80 L/min Crane Weight 6160 Kg Max.Lifting Height 21.65 m Max. Working Radius 21.65 m Hydraulic Oil Tank Capacity 240 L LIFTING CHART

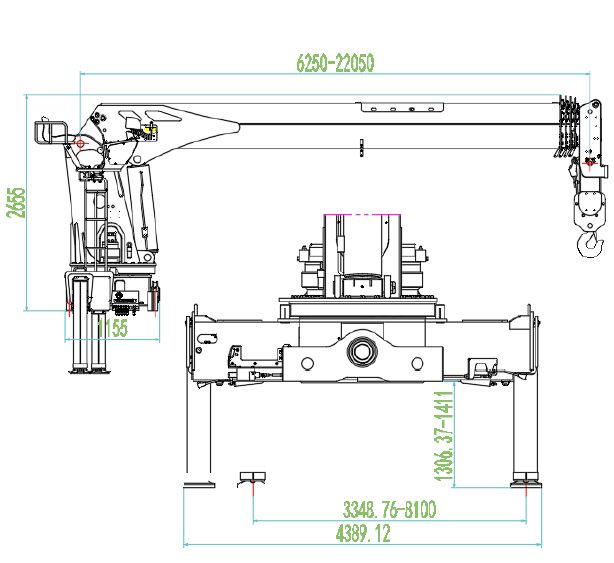

CRANE DIAMENSION
-
